Custom Gasket Mfg. is a leading supplier of high-quality compressed non-asbestos gaskets and seals.
Our company’s reputation for excellence has been built on our ability to provide our valued customers with the most effective manufacturing solutions to meet their most demanding applications. Our main objective is to continuously exceed our customer’s expectations by providing them with high-performance gaskets and sealing products, competitive pricing, on-time delivery and exceptional customer service. Custom Gasket Mfg. is committed to consistently meet all of your blueprint specifications and tolerance requirements.

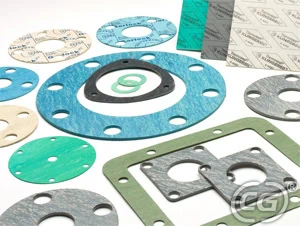

Custom Gasket Mfg. specializes in precision, die cut gaskets, including compressed non-asbestos gaskets for a wide variety of applications and industries worldwide. Compressed non-asbestos gasket materials combine non-asbestos fibers such as fiberglass and aramid fibers with rubber to enhance the temperature and pressure performance of the gasket. Combining inorganic and organic fibers with rubber and fiberglass allows for a range of variants that have different mechanical specifications. These compressed non-asbestos gaskets provide excellent ability to seal, torque retention, and heat resistance that eliminates the need for asbestos. Gaskets manufactured from compressed non-asbestos materials are designed to perform in applications involving, air, water, steam, oils, acids and general chemicals. Custom Gasket Mfg. takes pride in its ability to consistently provide high-quality; die cut compressed non-asbestos gaskets manufactured specifically for your application.
View Custom Products Request For Quote
Garlock Blue-Gard® Gaskets
Custom Gasket Mfg. provides die cut gaskets in a variety of Garlock Blue-Gard® compressed non-asbestos materials, including (but not limited to); Blue-Gard® 3000, Blue-Gard® 3200/3400 and Blue-Gard® 3300, Blue-Gard® 3700.
Blue-Gard® 3000 (Blue): is a unique blend of aramid fibers with a nitrile binder. It has excellent ability to seal which creates less waste and lower energy consumption. It is used in general industry including: water and wastewater treatment; oil and gas production; food processing, pipe flange gaskets and boiler gaskets. It is rated for temperatures up to 700°F.
Blue-Gard® 3200/3400 (Off White/Black): is a unique blend of aramid fibers with an SBR (Styrene Butadiene Rubber) binder. It possesses excellent sealing characteristics with good torque retention. It is a cost-saving material with low emissions. It is used in general industry including: power generation (steam); water and water treatment, and gas production & delivery. It is rated for temperatures up to 700°F.
Blue-Gard® 3300 (Black): is a blend of aramid fibers with a neoprene binder. It is effective against oils, fuels and refrigerants. It is used in general industry including: refrigeration, petroleum, oil & gas production; power generation (saturated steam) and water distribution and treatment. It is rated for temperatures up to 700°F.
Blue-Gard® 3700 (Light Grey): is a blend of aramid fibers, inorganic fillers and an EPDM (Ethylene Propylene Diene Monomer) rubber binder. It is used against acids and caustics of moderate concentrations. It adds exceptional resistance to both weather aging and ozone. It is rated for temperatures up to 700°F.
Gasket Resources Durlon® Gaskets
Custom Gasket Mfg. provides die cut gaskets and waterjet cut gaskets in a variety of Durlon® compressed non-asbestos materials, including: Durlon® 8400, Durlon® 8500, Durlon® 8600 and Durlon® 8700.
Durlon® 8400 (gold): is a Phenolic NBR sheet. It has the widest range of chemical resistance of any compressed non-asbestos sheet material. It is used in chemical applications such as; process piping and pulp & paper industries. It is ideal for fluid services including saturated steam, oils, dilute acids & alkalis, solvents, fuels and refrigerants. It is rated from -100°F to 800°F (intermittent) and continuous at 554°F.

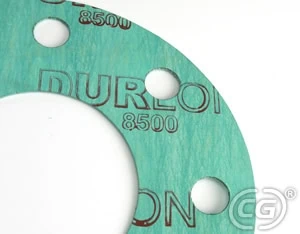

Durlon® 8500 (green): contains a unique blend of aramid, inorganic fibers bonded with nitrile rubber. It provides excellent results for steam, hydrocarbons, natural gas, and new generation refrigerants. It is used in general industry including chemical, pulp and paper, refinery, pharmaceutical, gas pipeline, and food and beverage industries. It is ideal for fluid services including saturated steam, oils, dilute acids and alkalis, solvents, fuels and refrigerants. It is rated from -100°F to 800°F (intermittent) and continuous at 548°F.
Durlon® 8600 (White): is an aramid, inorganic fiber sheet bonded with SBR rubber. It is highly used in power, petro-chemical as well as the good and beverage industries. It has good compressibility, recovery, and excellent ability to seal in steam, condensate, and dilute acids. It is developed for services such as water, steam, air inert gases, alcohols, dilute acids and alkalis ammonia and many other liquids and gases. It is rated from -100°F to 800°F (intermittent) and continuous at 548°F.
Durlon® 8700 (blue): is a unique blend of high strength aramid and inorganic fibers with a neoprene binder. It has excellent resistance to ozone and provides excellent ability to seal in services such as ammonia containing refrigerant systems and oils. This product has excellent resistance to steam, ozone, oils, dilute acids, non-aromatic solvents and many refrigerants. It is rated from -100°F to 800°F (intermittent) and continuous at 548°F.
Please visit our gasket materials page for more information on our extensive selection of materials.
For more information on custom compressed non-asbestos gaskets or to speak with one of our knowledgeable professionals, please feel free to Contact Us or complete our online Request For Quote form.
Call 800-985-6750 or email your inquiry to sales@customgasketmfg.com.
