Custom Gasket Mfg. is a leading supplier of high-quality PTFE gaskets, seals, washers and insulators.
Our company’s reputation for excellence has been built on our ability to provide our valued customers with the most effective manufacturing solutions to meet their most demanding applications. Our main objective is to continuously exceed our customer’s expectations by providing them with high-performance gaskets and sealing products, competitive pricing, on-time delivery and exceptional customer service. Custom Gasket Mfg. is committed to consistently meet all your blueprint specifications and tolerance requirements.

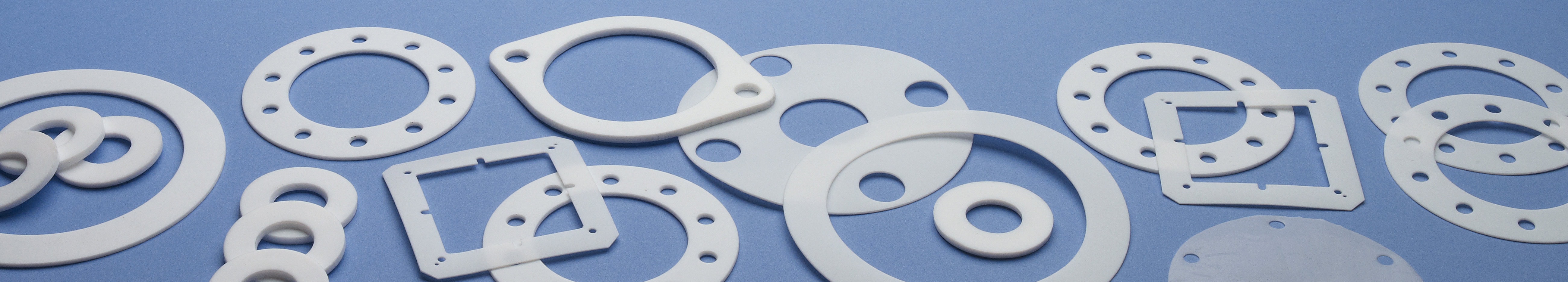

Custom Gasket Mfg. specializes in precision PTFE gaskets, seals, washers, and insulators for a wide range of industries and applications. We provide custom PTFE products by means of die cutting, stamping, punching, water jet cutting, and laser cutting. Polytetrafluoroethylene (PTFE), also known by the common trade name TEFLON™, is a synthetic fluoropolymer of tetrafluoroethylene consisting completely of carbon and fluorine. It is innately hydrophobic (repelling water and water containing substances) and has one of the lowest coefficients of friction against any solid.
View Custom Products Request For Quote
PTFE has excellent dielectric properties and provides excellent thermal insulation with an operating temperature range of -400°F to 500°F. PTFE is the most chemically resistant plastic known and is unaffected by most corrosive liquids, vapors, and gases. PTFE is generally offered in thicknesses spanning from .002″ to .250″ thick and conforms to both FDA and AMS specifications, making it acceptable to both medical and food production industries. Custom Gasket Mfg. can custom manufacture quantities from prototype and short run through large production runs. We will provide custom PTFE components to your precise specifications. Custom Gasket Mfg. takes pride in its ability to consistently provide precision PTFE products guaranteed to meet your specifications and function perfectly within your application.
The three basic types of PTFE materials include: Virgin®, Filled and Expanded.
PTFE, Unfilled Gaskets (Virgin PTFE® Gaskets)
Virgin grade PTFE gaskets are made from 100% pure material which is used in most general applications. It is extremely soft and formable and is often used for chemical resistant seals and gaskets. It is made directly from the resin producer and has never been processed into a shape. It possesses the highest physical and electrical insulation properties and has increased resistance to creep (compression) under load. Virgin grade PTFE can be recognized by its whiter color compared to mechanical grade PTFE.
PTFE, Filled Gaskets
Filled PTFE gaskets are made from PTFE which integrates additives and fillers in order to improve the performance of the gasket. This improves the gaskets ability to wear and enhances its unique combination of chemical, physical and electrical properties. Filled PTFE is the most common type of PTFE gasket for industrial use as it exhibits improved mechanical strength compared to Virgin PTFE. Glass, carbon and fiber particles are typical fillers that are used to enhance the mechanical strength of the gasket depending on the application.
Our most common PTFE filled grades include:
PTFE, Glass Filled Gaskets
- Added in various amounts (5% to 40%)
- Increases compressive strength
- Rigidity and wear
- Reduces creep and cold flow
- Minimal effect on chemical and electrical properties
- Used in applications to decrease cold flow
PTFE, Carbon Filled Gaskets
- Added in various amounts (10% to 35%)
- Increases compressive strength
- Hardness, wear and load properties
- Good chemical resistance
- Various types and amounts of carbon can be added to alter conductivity
PTFE, Graphite Filled Gaskets
- Added in various amounts (5% to 15%)
- Reduces coefficient of friction
- Reduces initial wear
- Increases strength
- Compatible with most hydraulic fluids
- Outstanding performance in hydraulic/pneumatic compression type rod and piston seals, bearing bands and rotary applications
PTFE, Expanded Gaskets
Expanded PTFE gasket material is produced by expanding Virgin PTFE using a process that creates a uniform and highly fibrillated microstructure with equal tensile strength in all directions. This means that expanded PTFE possesses no structural weakness or a “grain”. Since no additives are required, expanded PTFE also possesses the unique chemical resistance of Virgin. Expanded PTFE is much softer and more flexible than regular PTFE gaskets and thus conforms easily to irregular and rough surfaces. The material is easier to compress and minimizes creep and cold flow.
Custom Gasket Mfg. provides custom PTFE gaskets using a broad range of well known PTFE material brands such as; Garlock®, Thermoseal® (Klinger®), Durlon®, Frenzelit®, Flexitallic® and Teadit® in various styles and thicknesses. PTFE gaskets can be supplied with or without pressure sensitive adhesive (PSA) backing.
Garlock® Sealing Technologies Gylon®
Gylon® Style 3500: PTFE with silica filler. Its main features include: excellent chemical resistance, improved performance over conventional PTFE, resistant to cold flow and creep, excellent bolt-load retention, outstanding dimensional stability under thermal stress, and resistance to wear and abrasion. It is fawn in color.
Gylon® Style 3504: PTFE with a filler of glass microspheres. Its main features include: resists a wide range of chemicals, highly compressible with excellent bolt-load retention, improved performance over conventional PTFE, outstanding dimensional stability, and resists wear and abrasion. It is blue in color.
Gylon® Style 3510: PTFE with barium sulfate filler. It is the most chemically resistant of the Gylon® series. Its main features include: excellent chemical resistance, improved performance over conventional PTFE, resistant to cold flow and creep, excellent bolt-load retention, outstanding dimensional stability under thermal stress, and resistance to wear and abrasion. It is off-white in color.
Gylon® Style 3540: Microcellular PTFE. Highly compressible PTFE seals under low bolt load- suitable for many non-metallic flanges, compressible material conforms to surface irregularities, especially on warped, pitted or scratched flanges, reduced cold flow and creep normally associated with conventional PTFE gaskets, pure PTFE withstands a wide range of chemicals.
Gylon® Style 3565 ENVELON®: PTFE with glass filler. Soft, deformable exterior conforms to surface irregularities; ideal for worn, warped or pitted flanges, stable blue core improves cold flow resistance, low bolt load requirements ensure a tight seal on glass-lined or wavy flanges, direct sintering of Gylon® layers prevents leak paths and adhesive contamination.
Klinger® Top-Chem-2000: Heavy-duty modified PTFE with the addition of silicon carbide. It is used for applications in the chemical and petrochemical industries as well as in the ship building industry. It is the only PTFE based material with fire safe approval.
Klinger® Top-Chem-2003: Modified PTFE contains glass microspheres. It has great compressibility and is ideal for maintaining a tight seal even at low surface loads and temperatures. It has excellent chemical resistance in strongly acidic and alkaline applications and excellent mechanical properties at medium temperatures and loads.
Klinger® Top-Chem-2005: Modified PTFE optimized for use in acidic applications. The addition of glass improves the mechanical properties of PTFE and increases the operational range of PTFE based materials. It is designed for use in acidic environments and cannot be used with strong alkalis.
Klinger® Top-Chem-2006: Modified PTFE optimized for use in alkaline applications. The addition of barium sulfate improves the mechanical properties of PTFE and increases the operational range of PTFE based materials. It is designed for use in alkaline environments and cannot be used with strong acids.
Gasket Resources Durlon®
Durlon® 9000 & 9000N – Pure PTFE resins with inorganic fillers, excellent for use against more aggressive chemicals
Durlon® 9200W – Pure PTFE resins reinforced with barium sulfate fillers are recommended for hydrofluoric acid service, excellent for use against more aggressive chemicals
Durlon® 9400 – Pure PTFE resins reinforced with carbon fillers, excellent resistance against highly aggressive chemicals (including hydrofluoric acid). It also demonstrates good electrical conducting properties
Sigma® 500 – Biaxially orientated PTFE containing hollow glass microspheres
Sigma® 511 – Biaxially orientated PTFE containing silica
Sigma® 533 – Biaxially orientated PTFE containing barium sulfate
Sigma® 588 – Biaxially orientated (FDA Compliant) PTFE containing conformable surface layers designed for glass-lined, ceramic, plastic and low bolt load applications
Sigma® 600 – High performance biaxially orientated (FDA Compliant) PTFE with controlled porosity
Novaflon® 100 – Modified PTFE containing hollow glass microspheres
Novaflon® 200 – Modified PTFE containing barium sulfate
Novaflon® 300 – Modified PTFE containing silica
Novaflon® 500 – 100% multi-directional expanded PTFE
Teadit® NA1500 – Virgin PTFE Sheet
Teadit® NA1525 – 25% Glass Filled PTFE Sheet
Teadit® NA1550 – Mechanical Grade PTFE Sheet
Teadit® Tealon® TF1570 – Virgin PTFE resin filled with hollow glass microspheres
Teadit® Tealon® TF1580 – Virgin PTFE resin filled with barium sulfate
Teadit® Tealon® TF1590 – Virgin PTFE resin filled with silica
Teadit® Quimflex SH (Teadit® 24SH) – 100% Expanded PTFE Sheet
Please visit our gasket materials page for more information on our extensive selection of materials.
For more information on custom PTFE products or to speak with one of our knowledgeable professionals, please feel free to Contact Us or complete our online Request For Quote form.
Call 800-985-6750 or email your inquiry to firstname.lastname@example.org.
